PW2-O-400
ow2od
324
422
512
Product Details

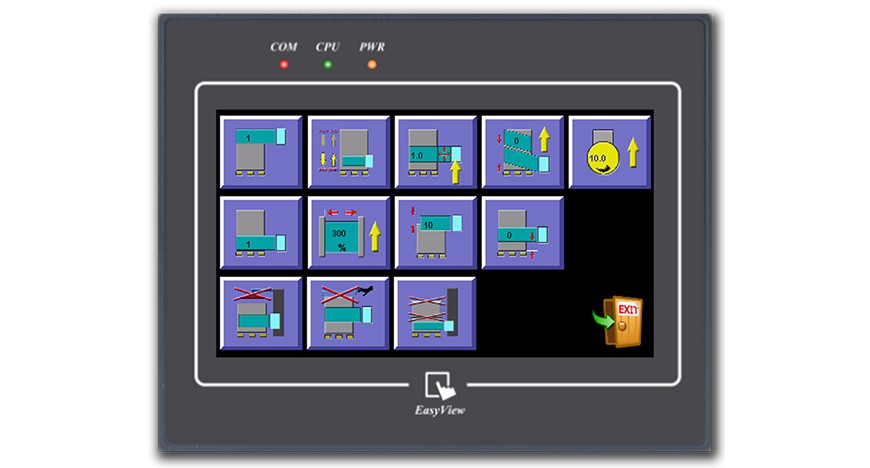

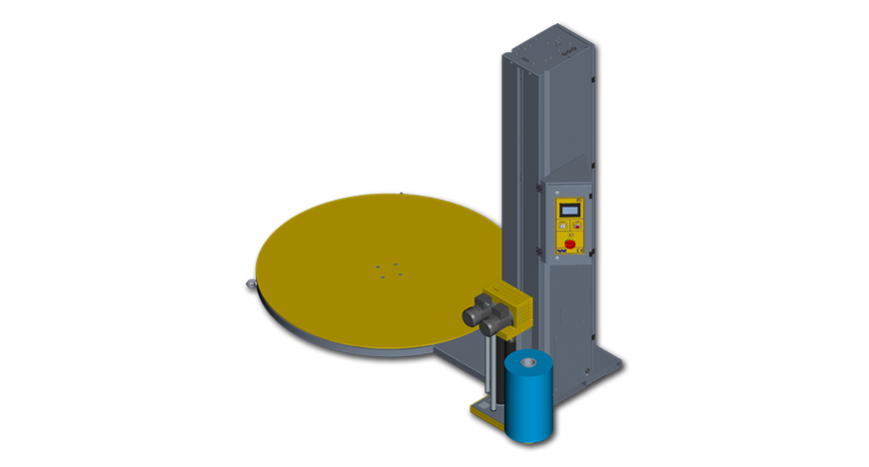

Pallet wrapper PW2-O-400 is equipped with a readable and userfriendly 4.3 inch touch panel, which allows for immediate modification and setting of parameters. Dual and motorized film stretch from 100 to 300%, adjusted with the control panel, allows for significant reduction of the film consumption and achieving required effect by adjusting the level of stress. You will reduce cost immediately and break even much faster in longer perspective. Platform „O” is dedicated for pallets loading with forklift trucks. Optionally, you may integrate the wrapper with a ramp or an inlet mould in order to enable manuallycontrolled devices getting on the turntable.

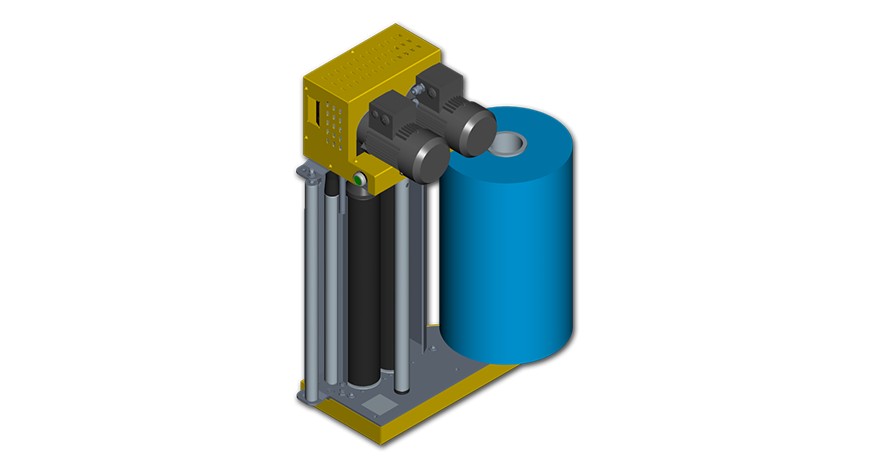

The prestretch film motorized type „400”
A preliminary, motorized, doubleengine system allowing for 300% film stretching. The film is stretched inside the head between two rubber rollersallowing for applying prestretched film, especially suitable for packing delicate, easily deformable goods. It is possible to additionally stretch the film between the dispensing roller and the load.
Features and capabilities:
- Touch control panel 4.3 inches
- Automatic control of load height
- The easy and safe film installing system
- Safety switch under carriage
- Wrapping pallets from the level of rotary table
- The control system with diagnostics work
- Smooth start and stop of the turntable
- 12 users programs
- The parameters programmable from the control panel
- Lock feature parameter changes
Wrapping parameters:
- Regulated Film stressing between the dispensing roller and the pallet
- Prestretch and stretch start delay
- Stretch foil regulated from 100%-300%
- The number of wraps on the top / bottom of the palette adjusted independently
- Option on / off electromechanical clamp
- Wrapping cycle single / double
- Film carriage going over the pallet
- Check the trolley with the film over the pallet in cm
- Optional wrapping of pallet with divider(s)
- Independently regulated filmoverlap at the forklift up/ down (speed of forklift with film)
- Adjustable independently while driving the trolley up / down speed turntable
- Independently regulated speed of turntable at the forklift up/down
Additional options:
– Acces ramp
– Inlet mould

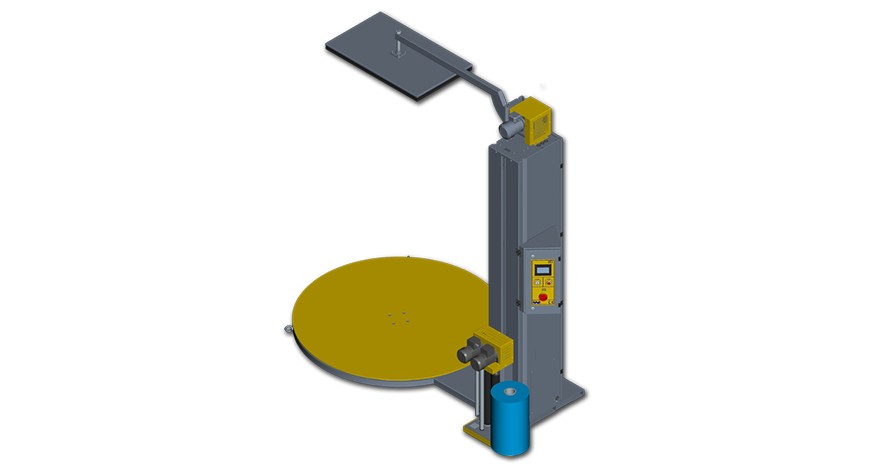

– Mast to wrap pallets up to 106″
– Turntable 79″
– Electromagnetic clamp
– Turntable with extended frame
– Inox version
Films
Technical Specifications
| Installed capacity: | 1 kW |
| Weight: | approx. 771 lb |
| Rotating platform height: | 3″ |
| Rotating platform diameter: | 65″ |
| Capacity: | up to 30 pallets/h |
| Wrapping level:— with M+ option* if the film protruding over the load = 0 mm | up to 90.5″* up to 110″* |
| Rotational speed of platform: | 4 to 14 turns/min |
| Maximum platform “0” load capacity (optionally to 4409 lb) | 3306 lb |
| Maximum platform “E” load capacity: | 2645 lb |
| Operating temperature: | 32 to 104 °F |
| Manufacturer’s service |
