PW2-O-300

  • ow2oc

    ow2oc

  • 322

    322

  • 5111

    5111

  • 420

    420

Product Details

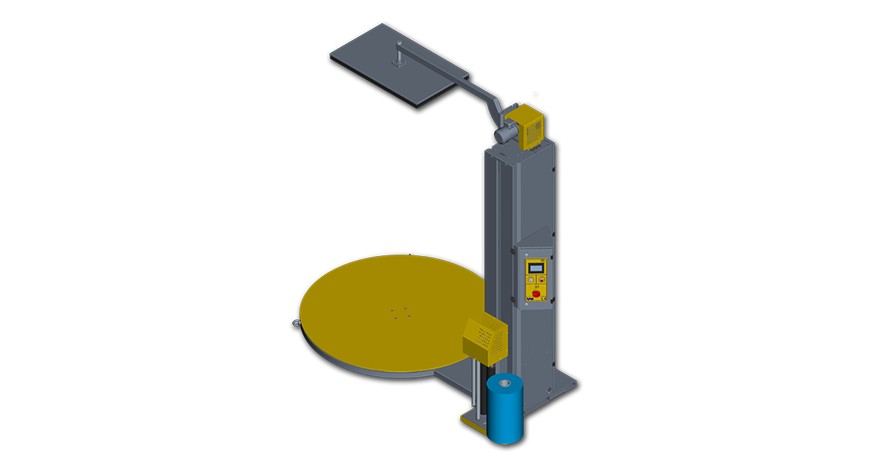

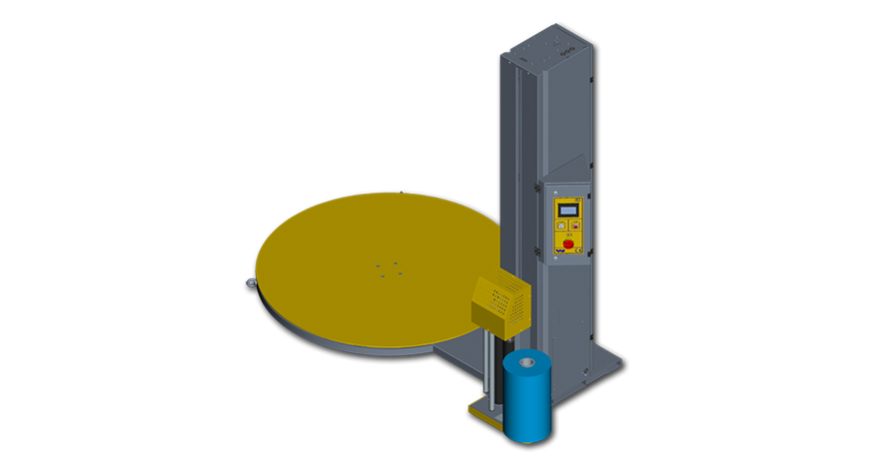

Pallet wrapper PW2-O-300 is equipped with a readable and user­friendly 4.3 inch touch panel, which allows for immediate modification and setting of parameters. Thanks to motorized 200% stretch you will save film and achieve the required effect by adjusting the level of tension. It is destined for wrapping all types of loads on pallets in stretch film. Platform „O” is dedicated for pallets loading with fork­lift trucks. Optionally, you may integrate the wrapper with a ramp or an inlet mould in order to enable manually­controlled devices getting on the turntable.

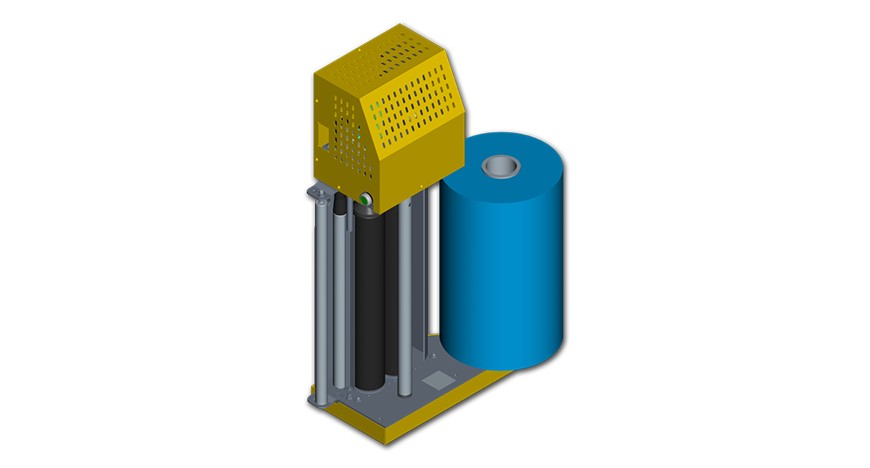

The pre­stretch film motorized type „300”

A preliminary, motorized, single­engine system allowing for 200% film stretching. The film is stretched inside the head between two rubber rollers allowing for applying pre­stretched film, especially suitable for packing delicate, easily deformable goods. It is possible to additionally stretch the film between the dispensing roller and the load.

Features and capabilities:

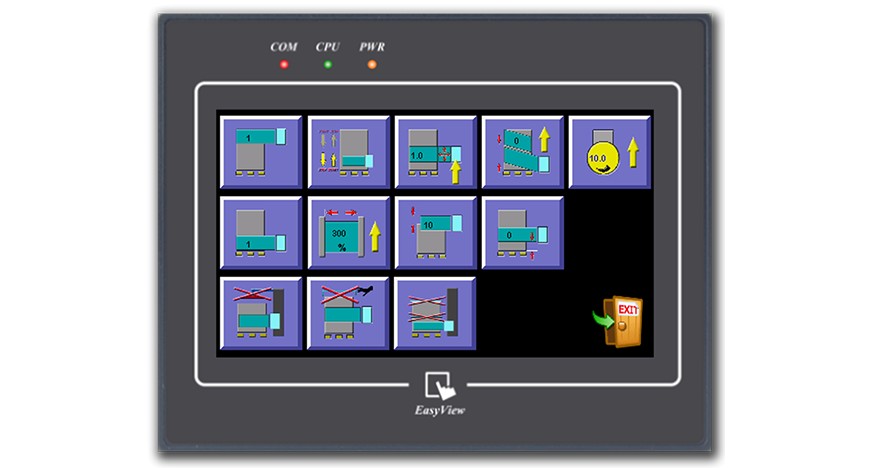

  • Touch control panel 4.3 inches
  • Automatic control of load height
  • The easy and safe film installing system
  • Safety switch under carriage
  • Wrapping pallets from the level of rotary table
  • The control system with diagnostics work
  • Smooth start and stop of the turntable
  • 12 users programs
  • The parameters programmable from the control panel
  • Lock feature parameter changes

Wrapping parameters:

  • Regulated Film stressing between the dispensing roller and the pallet
  • Pre­stretch and stretch start delay
  • Stretch constant at 200%
  • The number of wraps on the top / bottom of the palette ­ adjusted independently
  • Option on / off electromechanical clamp
  • Wrapping cycle single / double
  • Film carriage going over the pallet
  • Check the trolley with the film over the pallet in cm
  • Optional wrapping of pallet with divider(s)
  • Independently regulated filmoverlap at the forklift up/ down (speed of forklift with film)
  • Adjustable independently while driving the trolley up / down speed turntable
  • Independently regulated speed of turntable at the forklift up/ down

Additional options:

– Acces ramp

– Inlet mould

– Mast to wrap pallets up to 106″

– Turntable 79″

– Electromagnetic clamp

– Turntable with extended frame

– Inox version

Films

Technical Specifications

Installed capacity: 1 kW
Weight: approx. 771 lb
Rotating platform height: 3″
Rotating platform diameter: 65″
Capacity: up to 30 pallets/h
Wrapping level:— with M+ option* if the film protruding over the load = 0 mm up to 90.5″* up to 110″*
Rotational speed of platform: 4 to 14 turns/min
Maximum platform “0” load capacity (optionally to 4409 lb) 3306 lb
Maximum platform “E” load capacity: 2645 lb
Operating temperature: 32 to 104 °F
