Product Details

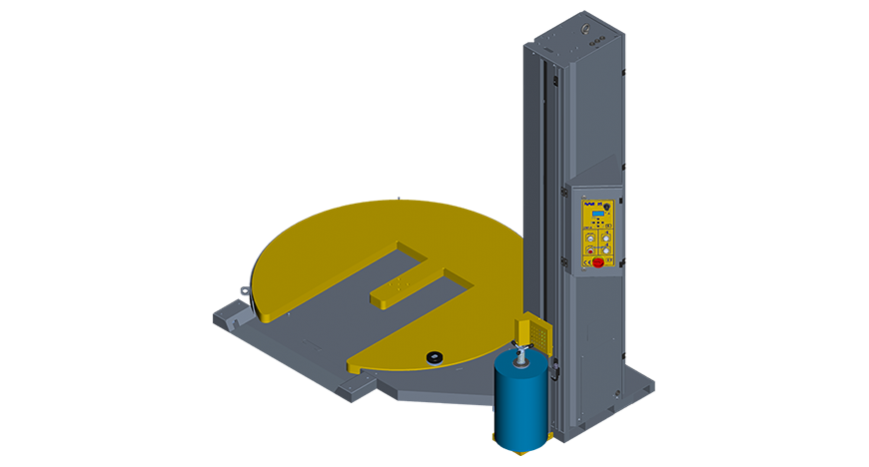

The wrapping machine is equipped with PLC (Programmable Logic Controller) controlling the machine operation. It is destined for wrapping all types of loads on pallets in stretch film and grip. Platform “E” has an incision in order to save space and facilitate pallet trucks manoeuvring.

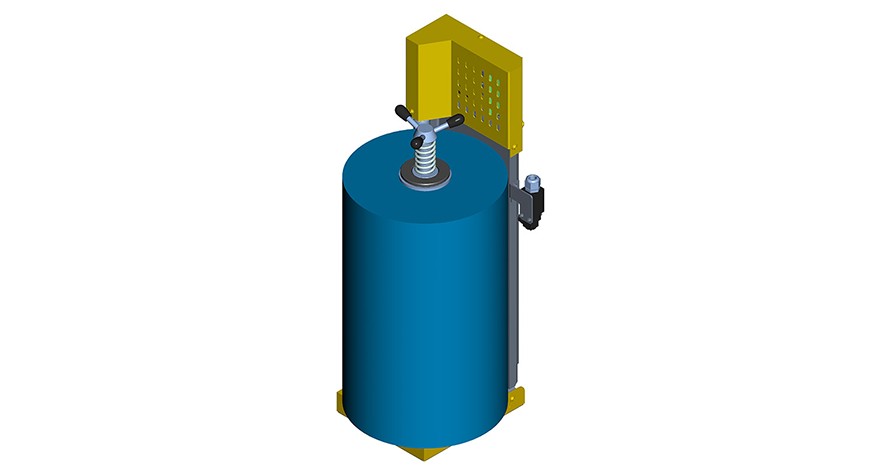

The mechanical stretch film type „100”
Basic system of mechanical film prestretching between the dispensing roller and the load. Performed by means of a mechanical break with regulated friction intensity. Also possible wrapping by grip.
Machine fautres:
- The stretching of the film controlled by mechanical brake 0 200%
- Drive of the rotating platform and the film trolley built in the mast
- Rotating platform positioning
- Regulation of the rotational speed of the rotating platform
- Smooth start and stop of the rotating platform
- Load wrapped from the rotating platform level
- The level sensor of the load to be packed
- The shutdown button under the film trolley
- Automated/ manual work cycle/ calibration
- Quantity of upper and lower wrappings independent parameters
- Odd and even wrapping cycles
- Smooth regulation of the film overlap
- Smooth move over the pallet
- Option to wrap with a divider
Additional options:
Mast to wrap pallets up to 106 “

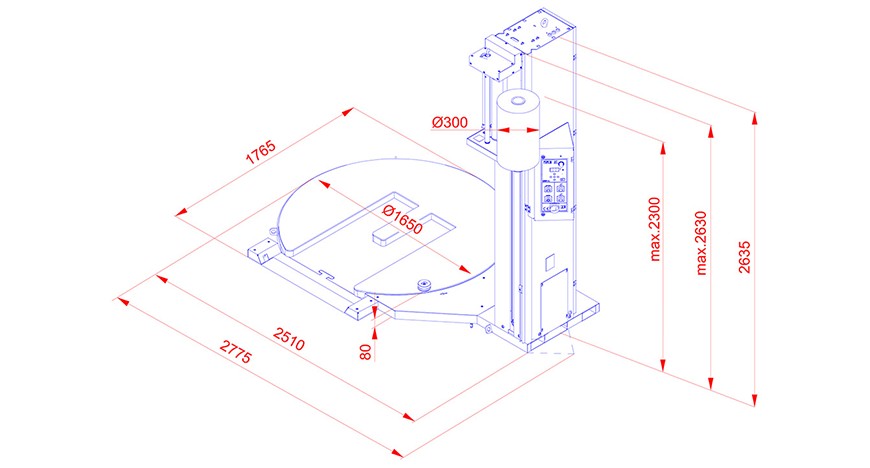

Technical Specifications
| Installed capacity: | 0,7 kW |
| Weight: | ~771 lb |
| Rotating platform height: | 3 “ |
| Diameter rotating platform: | 65 “ |
| Rotational speed of platform: | 4 to 14 turns/min |
| Capacity: | up to 20 pallets/h |
| Wrapping level: | up to 90.5″ |
| Maximum dimensions of pallet: | 1200 x 1000 mm |
| Maximum load capacity: | 3306lb |
| Powder coated: | RAL 9006 |
| Operating temperature: | 32 to 104 °C |
