Product Details

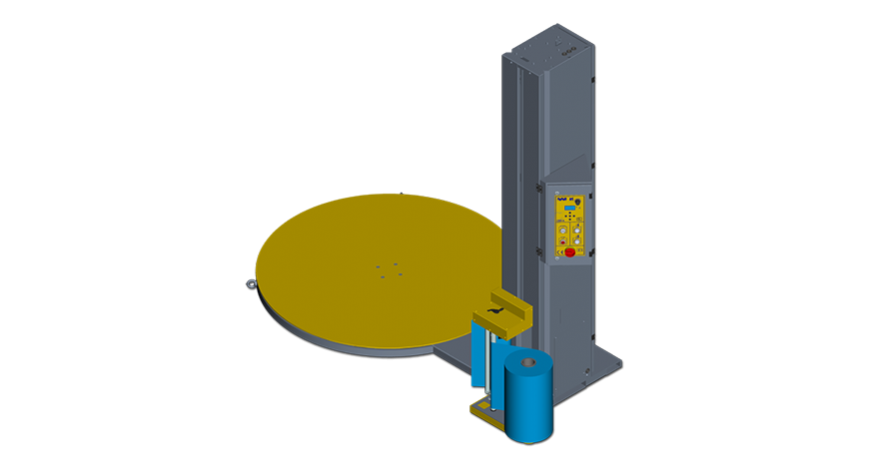

The wrapping machine is equipped with PLC (Programmable Logic Controller) controlling the machine operation. It is destined for wrapping all types of loads on pallets in stretch film and grip. Thanks to the simple construction of the carriage with film, you will mechanically set the constant film stretch without need to modify it during the roller replacement. Platform „O” is dedicated for pallets loading with fork­lift trucks. Optionally, you may integrate the wrapper with a ramp or an inlet mould in order to enable manually­controlled devices getting on the turntable.

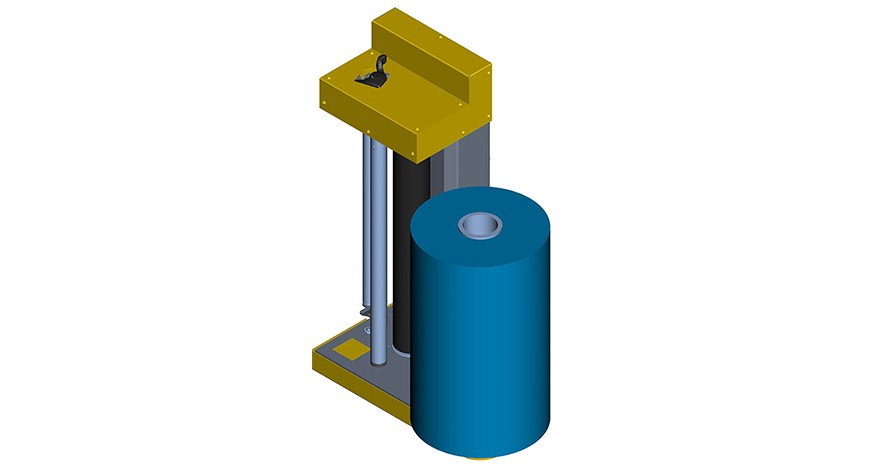

The mechanical stretch film type „200”

A basic system of mechanical film pre­stretching between the dispensing roller and the load. Performed by means of a mechanical break with regulated friction intensity. When replacing the roller, you do not have to re­calibrate the stretch level . You may precisely adjust the stretch level with a knob.

Machine fautres:

  • The stretching of the film controlled by mechanical brake 0 ­ 250%

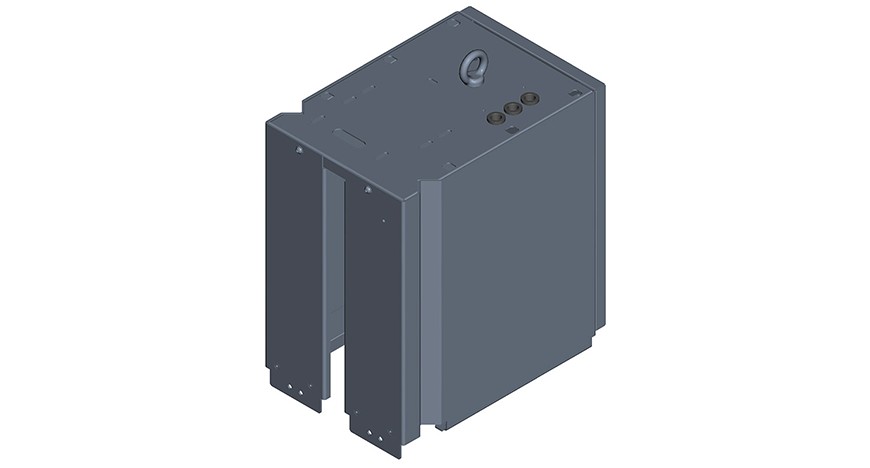

  • Drive of the rotating platform and the film trolley built in the mast
  • Rotating platform positioning
  • Regulation of the rotational speed of the rotating platform
  • Smooth start and stop of the rotating platform
  • Load wrapped from the rotating platform level
  • The level sensor of the load to be packed
  • The shutdown button under the film trolley

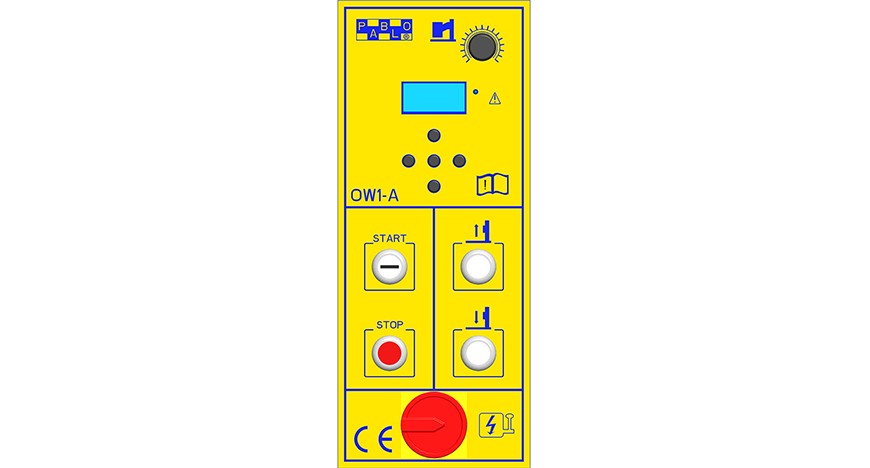

  • Automated/ manual work cycle/ calibration
  • Quantity of upper and lower wrappings­ independent parameters
  • Odd and even wrapping cycles
  • Smooth regulation of the film overlap
  • Smooth move over the pallet
  • Option to wrap with a divider

Additional options:

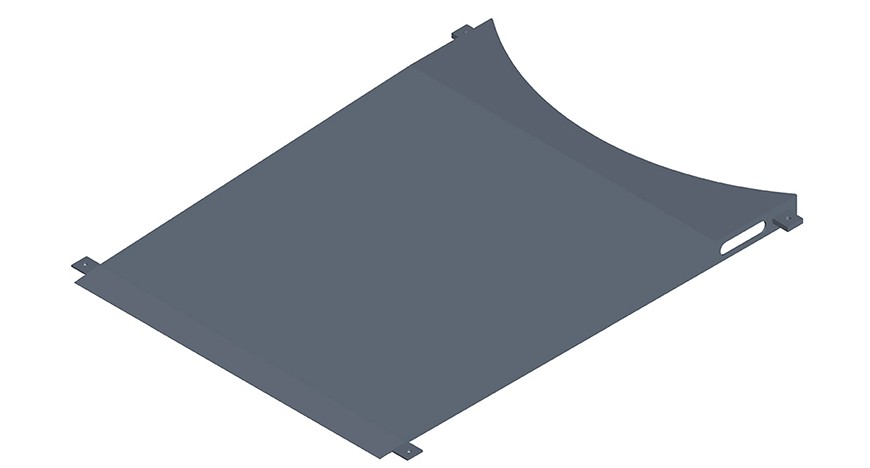

– Acces ramp

– Inlet mould

– Mast to wrap pallets up to 106″

– Turntable Φ 2000mm

– Electromagnetic clamp

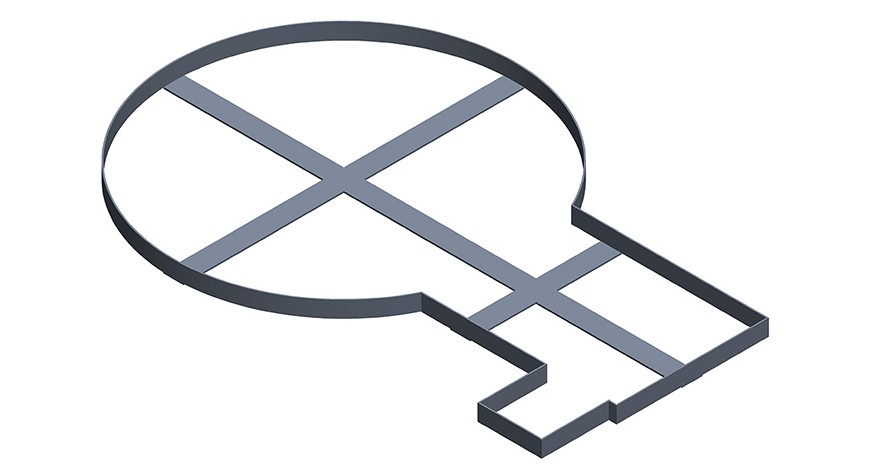

– Turntable with extended frame

– Inox version

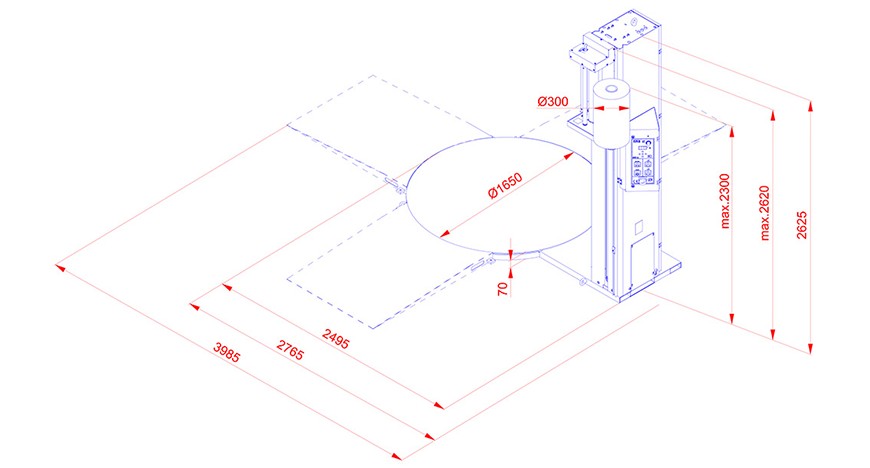

Technical Specifications

Installed capacity: 0,7 kW
Weight: ~771 lb
Rotating platform height: 3 “
Diameter rotating platform: 65 “
Rotational speed of platform: 4 to 14 turns/min
Capacity: up to 20 pallets/h
Wrapping level: up to 90.5″
Maximum dimensions of pallet: 1200 x 1000 mm
Maximum load capacity: 3306lb
Powder coated: RAL 9006
Operating temperature: 32 to 104 °C
