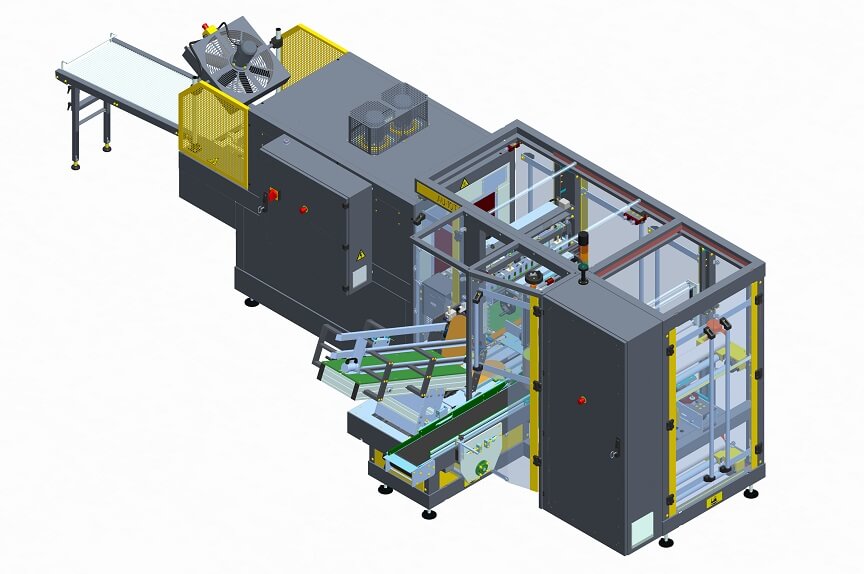

Automatic packaging line PAMERLINE MULTI PAD
AU10TA
Product Details
MAIN TYPES OF PACKAGING:
- CANS
- BOTTLES
- JARS
Machine capabilities

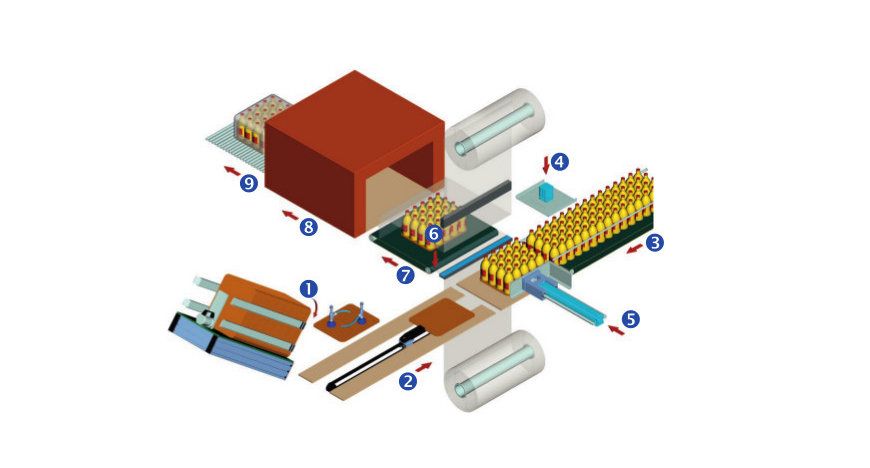

PAMERLINE MULTI PAD is a fully automated line for packing products on a cardboard tray. The machine forms multi-packs and puts them on a flat, cardboard tray, which provides support. Then, a formed package is transported to be filmed, sealed and cut off. In the final stage, multi-pack passes through the heat tunnel to get its final stage, then it is cooled down by a cooling fan and transported to the roller output table. The whole cycle is fully automated and does not require any human intervention. Homeothermal welder and automatic film unwinding streamline the whole process.
UNIQUE FEATURES:
- For various products
- Packing with and without a flat tray
- Tray storage adapted to different sizes
- Fast and user-friendly recalibration system
- Adapted to continuous and failure-free operation
- Easy access for cleaning and maintenance
- Low usage of spare parts and consumables
- Synchronization of transporters speed
- Fully electrical regulation of the speed of pushing arm – in 3 phases
- Adjusted to the customer’s products
- Available in left- and right-side version
Films
Technical Specifications
| Installed capacity: | 25 kW |
| Operating capacity: | 13 kW |
| Compressed air: | 87 psi |
| Air demand: | approx. 170 l/min |
| Gross weight: | approx. 2645 lb |
| Length of seal: | 23.5″ |
| Film thickness: | 25 – 100 µm |
| Capacity: | up to 5-12 cycles / minute * |
| Material: | powder coated steel or stainless steel |
| Colour: | RAL 9006 |
| Installed capacity: | 32 kW |
| Operating capacity: | 17 kW |
| Compressed air: | 0.6 MPa |
| Air demand: | approx. 170 l/min |
| Gross weight: | approx. 2755lb |
| Length of seal: | 23.5″ |
| Film thickness: | 25 – 100 µm |
| Capacity: | up to 8-15 cycles / minute * |
| Material: | powder coated steel or stainless steel |
| Colour: | RAL 9006 |
