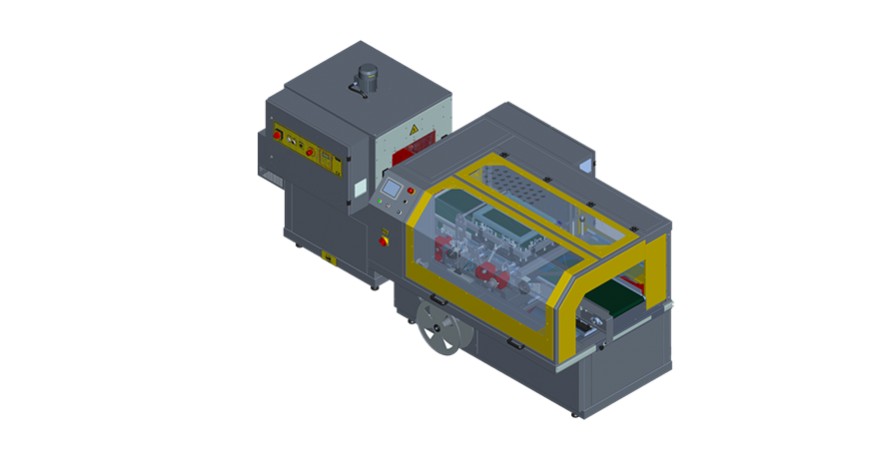

Automatic packaging line PAMERLINE SBL-30

  • 31

    31

  • 118

    118

Product Details

MAIN TYPES OF PACKAGING:

  • ALL UNITS WHICH REQUIRE AESTHETIC PACKAGING
  • ALL UNITS WHICH REQUIRE AESTHETIC
  • SPECIAL OFFER SETS
  • MULTI-PACKS
  • SINGLE UNITS
  • CARDBOARD BOXES
  • FOOD

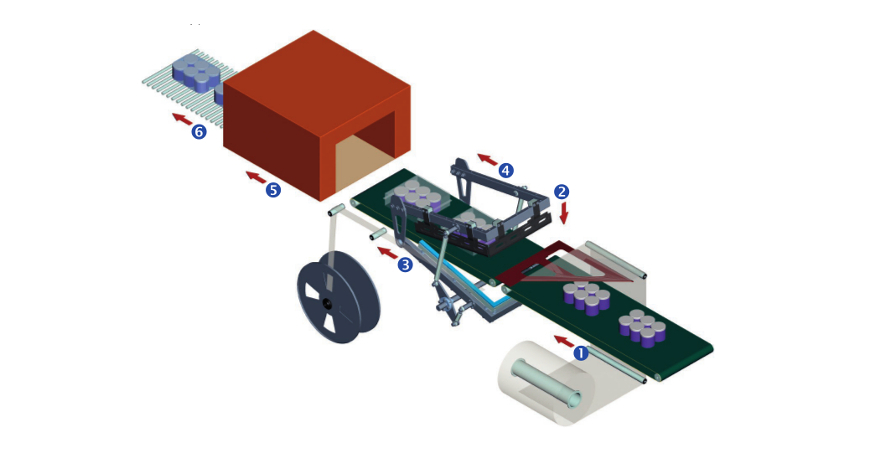

Suitable for packing in polyolefin half-sleeve. Products are collected from the previous line or provided by the operator and transported to a film sleeve and sealed. In the last phase, the product gets to the heat-shrink chamber where it takes its final aesthetic shape. The system allows for setting process parameters as well as reading variables, incidents and alerts. Temperature is regulated with programmable
PID regulators. Thanks to the applied solutions and technical improvements the operation is absolutely safe. You may set a great number of parameters in order to customise the process to a given product. Machine may be equipped with additional input conveyors.

UNIQUE FEATURES:

  • For various products
  • Operates within a line or independently
  • Vast range of regulated parameters (film quantity for the front and back part of the product, conveyors speed, sealing time)
  • Regulated height of seal
  • Regulated height of sealing bar
  • Regulated speed of tunnel conveyor belt
  • Regulated temperature of sealing
  • Film perforation

Films

Technical Specifications

Installed capacity: 12 kW
Compressed air: 87 Psi
Air demand: 170 l/ min
Gross weight: approx. 550 kg
Machine dimensions: L/W/H: 161″/59″/58″
Dimensions of sealing bar: L/W19.7″x15.7″(500 x 400 mm)
Maximum dimensions of the packed item: L/W/H: 17.5″”x 13.5″x 5″
Maximum weight 33lb
Capacity: up to 30 packages/ minute
Film type: polyolefin, PVC, low-density polyethylene LDPE
Operating temperature: 30 to 104°F
Power supply:
Installed capacity: 16,5 kW
Compressed air: 87 Psi
Air demand: 170 l/ min
Gross weight: approx. 700 kg
Machine dimensions: L/W/H:197″/67″/59″
Dimensions of sealing bar: L/W: 19.7″x15.7″(21.7″ x 400 mm)
Maximum dimensions of the packed item: L/W/H: 23.5″x19.5″x8.5″
Maximum weight 33lb
Capacity: up to 35 packages/ minute
Film type: polyolefin, PVC, low-density polyethylene LDPE
Operating temperature: 30 to 104°F
