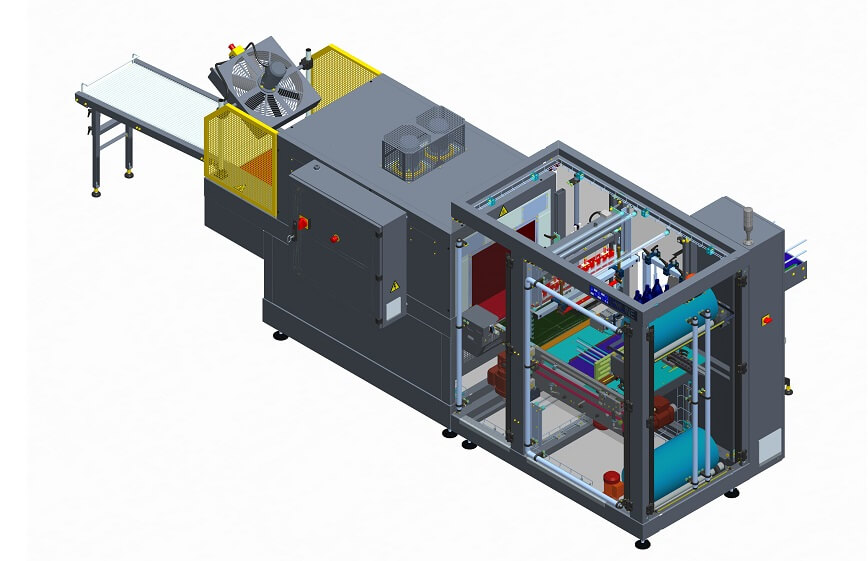

Automatic packaging line PAMERLINE MULTI

Product Details

MAIN TYPES OF PACKAGING:

  • CANS
  • BOTTLES
  • JARS
  • BRIQUETTE
  • CARTONS
  • PRODUCTS ON TRAYS WITH EDGE
  • CANDLES
  • PAPER TOWELS

Machine capabilities

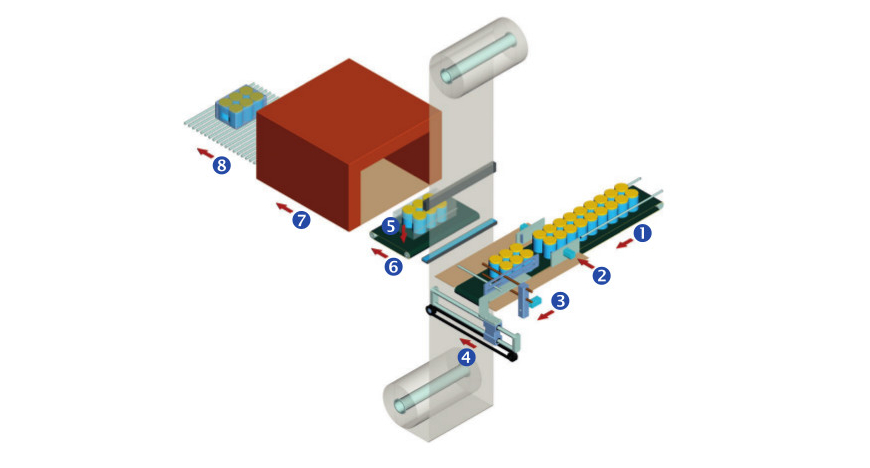

Wide range of available options of goods feeding, segregating and grouping allows for adjusting the machine structure to demands set by Clients representing various businesses. With series PAMERLINE MULTI, it is possible to easily adjust the size and parameters to the given package format. It is a perfect solution for Clients offering wide range of products. The machine automatically collects packed single units
from the belt conveyor of the previous machine in the production line, groups them in multi-packs and “encloses” them in a sleeve and pushes to the output table. The formed package is collected by the tunnel conveyor belt to the heat chamber, it is shrink-wrapped and cooled (here, it takes its final shape) and moved to the roller output table. The process is fully automated and does not require human intervention.

UNIQUE FEATURES:

  • May handle different types of product
  • Fast recalibration – no tools or formatting elements required
  • Adapted to continuous and failure-free operation
  • Easy access for cleaning and maintenance
  • Low usage of spare parts and consumables
  • Synchronization of conveyors speed
  • Fully electrical regulation of the speed of pushing arm – in 3 phases
  • Adjusted to the customer’s products
  • Option to pack in 3 rows simultaneously
  • Option to customize to printed film
  • Available in xl version for large products
  • Consisting of the best sub-assemblies available on the market
  • Available left- and right-side version

Technical Specifications

Installed capacity: 18 kW
Operating capacity: 10 kW
Compressed air: 87 ps
Air demand: approx. 115 l/min
Gross weight: approx. 1433 lb
Length of seal: 23.5″
Film thickness: 25 – 100 µm
Capacity: up to 12 cycles / minute *
Material: powder coated steel or stainless steel
Colour: RAL 9006
Installed capacity: 24,5 kW
Operating capacity: 13 kW
Compressed air: 0.6 MPa
Air demand: approx. 175 l/min
Gross weight: approx. 1873lb
Length of seal: 23.5″
Film thickness: 25 – 100 µm
Capacity: up to 18 cycles / minute *
Material: powder coated steel or stainless steel
Colour: RAL 9006
Power supply: 3 x 400 V, 50/60 Hz
Installed capacity: 32,5 kW
Operating capacity: 17 kW
Compressed air: 0.6 MPa
Air demand: approx. 190 l/min
Gross weight: approx. 2755 lb
Length of seal: 23.5″
Film thickness: 25 – 100 µm
Capacity: up to 20 cycles / minute *
Material: powder coated steel or stainless steel
Colour: RAL 9006
