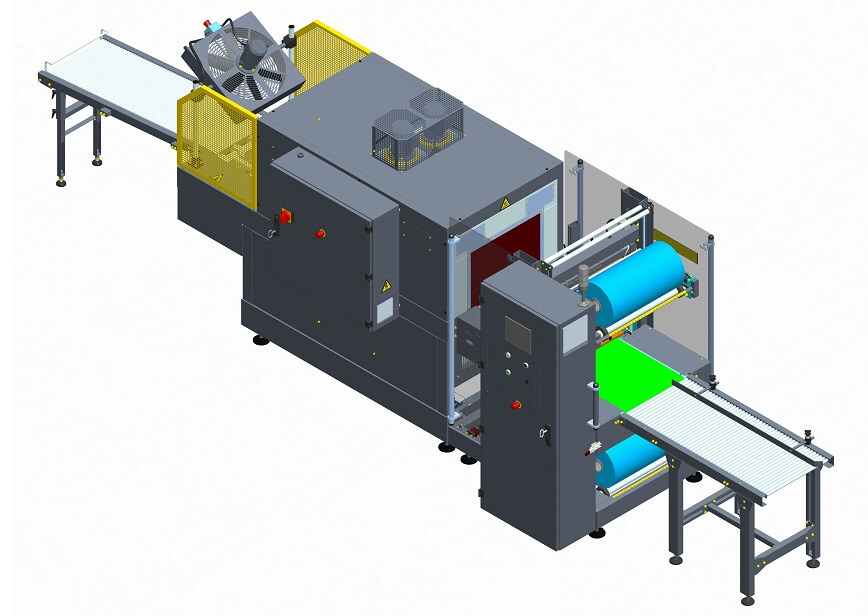

Automatic packaging line PAMERLINE 15
Product Details
MAIN TYPES OF PACKAGING:
- ALL PRODUCTS ON A LEDGE TRAY
- BOOKS
- BOXES
- CANDLES ON TRAYS
Machine capabilities

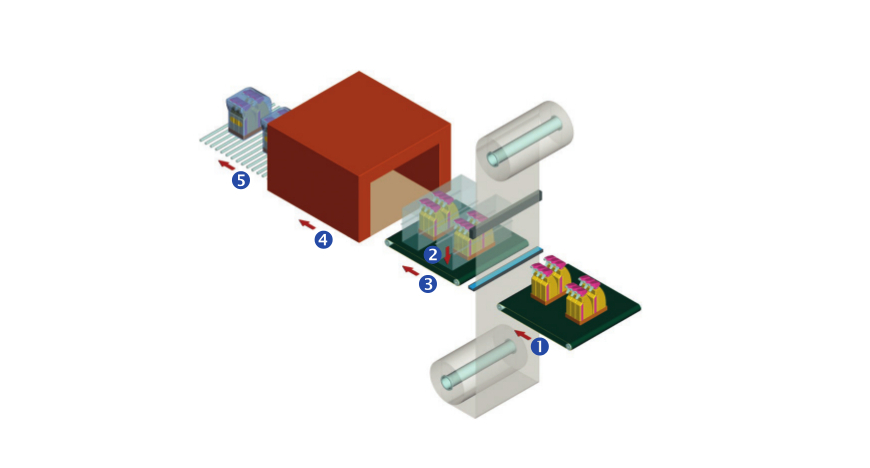

The line has an additional passive input conveyor, which may operate separately as an autonomous machine. The machine automatically collects goods from the belt conveyor of the previous machine in the production line and “encloses” them in a film sleeve and moves them to the output table. Then, the formed package is transported on the conveyor belt to the shrink tunnel chamber, shrink-wrapped and cooled (here, the package takes its final shape) and moved to the roller output table. The process is fully automated. It solves the problem of low capacity of traditional packing techniques and makes the production cycle much shorter.
UNIQUE FEATURES:
- Fast recalibration – no tools or formatting elements required
- Adapted to continuous and failure-free operation
- Easy access for cleaning and maintenance
- Low usage of spare parts and consumables
- Synchronization of conveyors speed
- Input conveyor for arranging and providing products
- Can be adapted to packing products of different sizes
- Upon request, available also in xl version for large products
Technical Specifications
Installed capacity: | 16,5 kW |
Operating capacity: | 8 kW |
Compressed air: | 87 psi |
Air demand: | approx. 115 l/min |
Gross weight: | approx. 1322lb |
Length of seal: | 23.5″ |
Film thickness: | 25 – 100 µm |
Capacity: | up to 12 cycles / minute * |
Material: | powder coated steel or stainless steel |
Colour: | structure – RAL 7001 safety shields – RAL 1021 |
Installed capacity: | 23 kW |
Operating capacity: | 12 kW |
Compressed air: | 87 psi |
Air demand: | approx. 175 l/min |
Gross weight: | approx. 1433lb |
Length of seal: | 23.5″ |
Film thickness: | 25 – 100 µm |
Capacity: | up to 16 cycles / minute * |
Material: | powder coated steel or stainless steel |
Colour: | RAL 9006 |
Installed capacity: | 31 kW |
Operating capacity: | 15 kW |
Compressed air: | 87 psi |
Air demand: | approx. 190 l/min |
Gross weight: | approx. 1763lb |
Length of seal: | 23.5″ |
Film thickness: | 25 – 100 µm |
Capacity: | up to 20 cycles / minute * |
Material: | powder coated steel or stainless steel |
Colour: | RAL 9006 |
