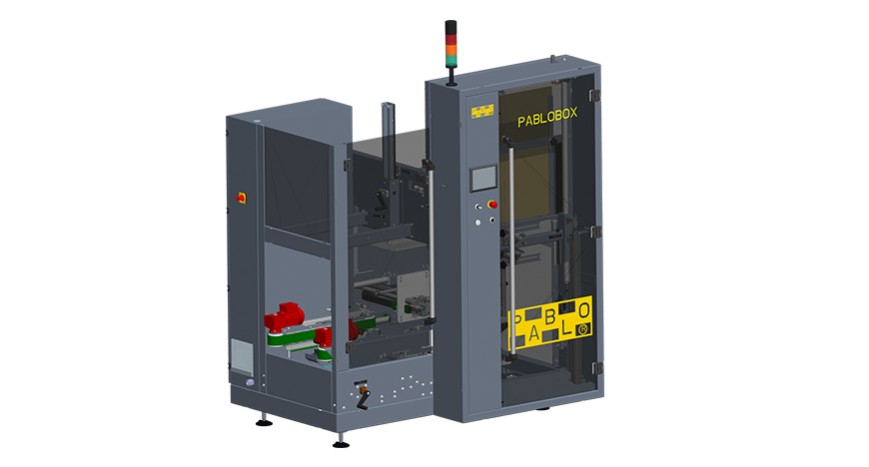

Automatic case erector PAMERBOX
pablobox
Product Details

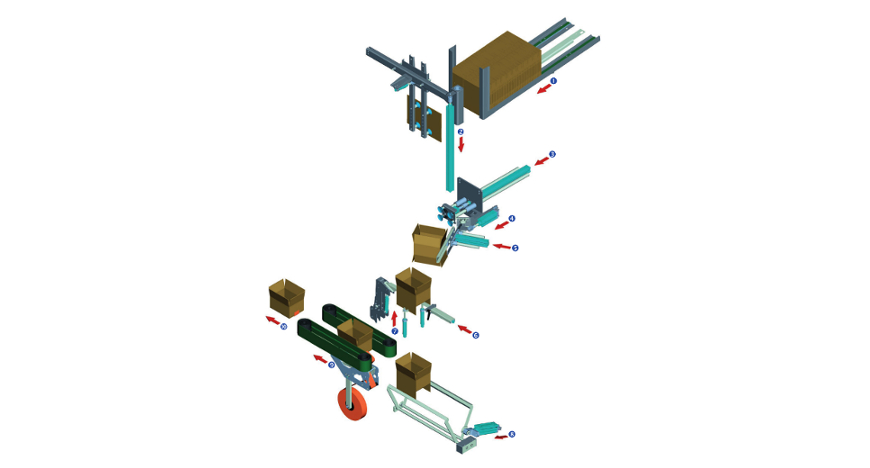

Case erector PAMERBOX is an effective, failure-free and cost-effective machine for forming cardboard boxes. The machine folds the cardboard and seals its bottom part in its central point. The packaging formed in this way with open upper flaps is ready for further handling. The case former may operate individually as well as within an existing production line.
Machine capabilities
The machine is available in 2 versions carton sealing:
T – self-adhesive tape
G – hot-melt glue.
Distinctive Features
- Possible packing several dimensions of boxes with a single machine
- 2 Versions available – sealing with adhesive tape or glue
- Ergonomic and functional structure
- Audio-visual error detection
- Optional overfill senor
- Low case sensor
- Low tape sensor
- Low glue sensor
- High process efficiency
Parameters of cartons
Maximum length 19.7″ (500 mm)*
Minimum length 7.9″ (200 mm)
The maximum width 15.7″ (400 mm)*
The minimum width 5.9″ (150 mm)
The maximum amount of open cardboard 23.6″ (600 mm)
The minimum amount of open cardboard 6.9″ (175 mm)
The maximum value 33.5″ (850 mm)*
Films
Technical Specifications
| Power: | 0,5kW / 4kW |
| Compressed aire: | 87 psi |
| The speed of the tape feed: | approx. 22 m / min |
| Total mass: | approx. 1653lb |
| Maximum Performance: | 16 cartons / min |
| Max diameter tape: | 12″ |
| Maximal width of the tape: | 2 mm |
| The minimum diameter of the tape: | 38 mm |
| Dimensions of the machine: | LxWxH 74″ x 71″ x 103″ |
| Execution: | Powder coated steel or stainless steel |
| Color: | Design: RAL 9006• Safety shields: Polycarbonate |
