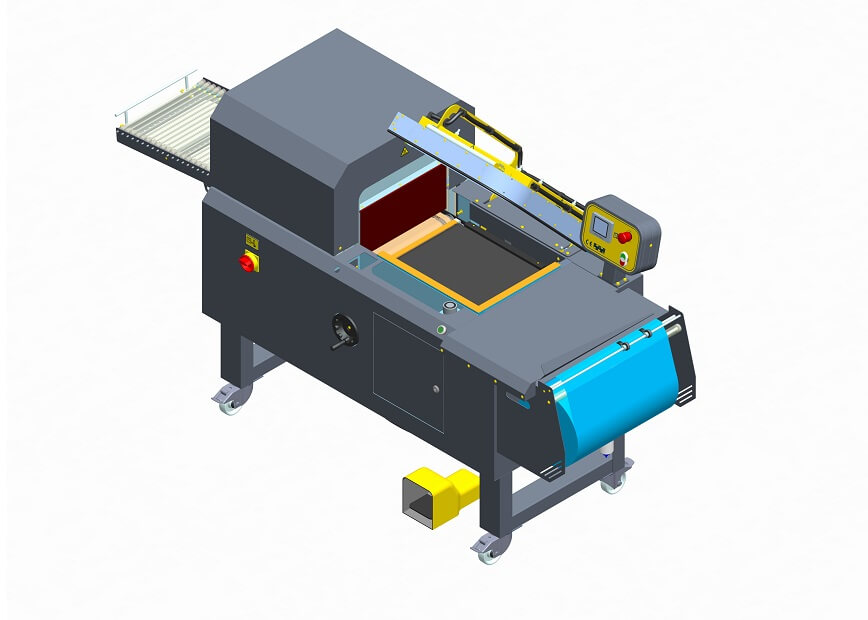

Semi – automatic packaging line PAMERLINE SBL-10
Au5
Product Details
MAIN TYPES OF PACKAGING:
- ALL ELEMENTS THAT REQUIRE HIGH AESTHETICS
- PROMOTIONAL SETS
- SINGLE ELEMENTS

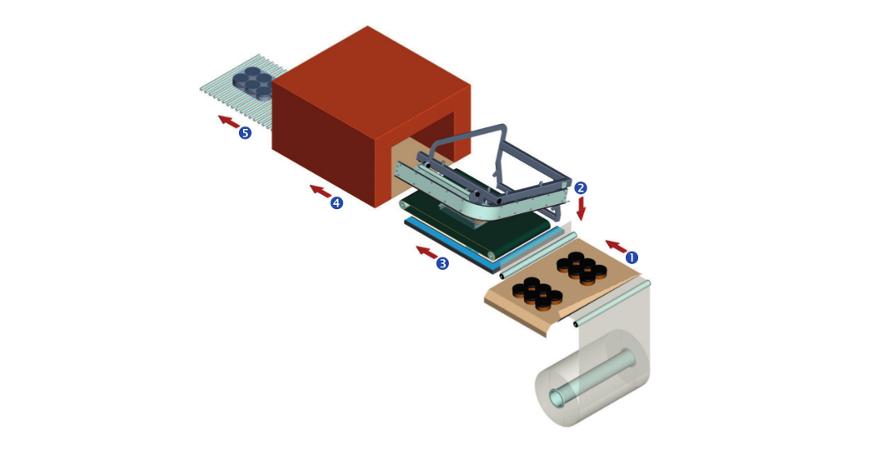

Automated or hand-held packing machine PAMERLINE SBL-10 is a-top-of-the-range system in the sector of heat-shrinkable film packaging. Due to its high reliability and resistance it is able to satisfy high production needs. Integrated with a heat conveyor tunnel, PAMERLINE SBL-10 is intended for single- and multi-packing in a centre-folded polyolefin shrink film. We offer hand-held and automated PAMERLINE SBL-10 -with hand operated or automatic sealing frame controlled by means of a pneumatic actuator. PAMERLINE SBL-10 has a shrink wrap tunnel equipped with a conveyor belt. The control panel is legible and user-friendly.
UNIQUE FEATURES:
- For various products
- Manual and automatic packing modes available
- Regulated position of feeder table and work-bench
- Regulated speed of tunnel conveyor belt
- Regulated temperature of seal
- Film perforation
- Pedal-controlled frame
Available Models:
- SBL-10 5040
- SBL-10 6050
- SBL-10 8060
Films
Technical Specifications
| Installed capacity: | 5.7 kW |
| Operating capacity: | 4 kW |
| Compressed air: | 87 psi |
| Air demand: | 17l/ cycle |
| Gross weight: | approx. 595lb |
| Dimensions: | H/W/L: 46″ x 32″ x 76 “ |
| Dimensions of sealing bar: | L/W: 19.7″x15.7″(500 x 400 mm) |

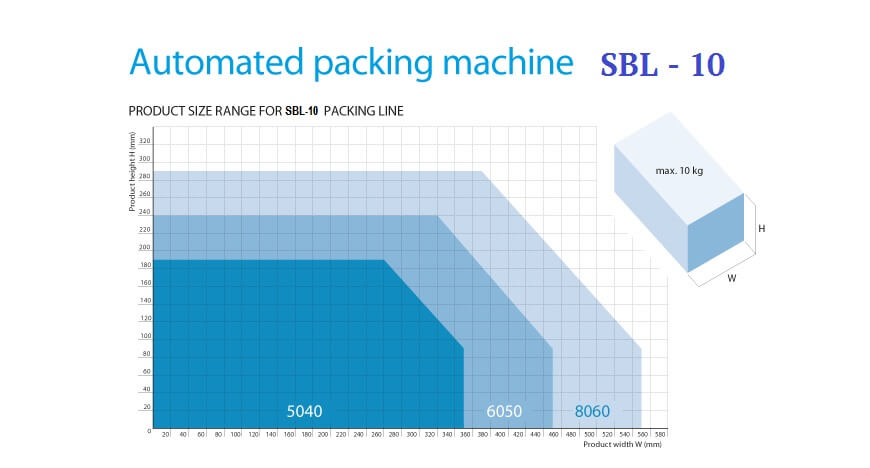

| Maximum dimensions of the packed item: | L/W/H: 19.5″ x 13.5″ x 7.5″ mm |
| Maximum weight: | 22 lb |
| Film type: | Polyolefin shrink film |
| Film perforations: | Yes |
| Internal dimensions of the tunnel: | W/H/L: 16″x8″x21 “ |
| Operating temperature: | 30 to 104°F |
| Service: | manufacturer’s |
| Installed capacity: | 7.4 kW |
| Operating capacity: | 5 kW |
| Compressed air: | 6 bar |
| Air demand: | 17l/ cycle |
| Gross weight: | approx. 705lb |
| Dimensions: | H/W/L: 48″ x 36″ x 88″ |
| Dimensions of sealing bar: | L/W: 600 x 500 mm |
| Maximum dimensions of the packed item: | L/W/H: 23.5″ x 17″ x 9.5″ |
| Maximum weight: | 22 lb |
| Film type: | Polyolefin shrink film |
| Film perforations: | Yes |
| Internal dimensions of the tunnel: | W/H/L: 20″x10″x25″ |
| Operating temperature: | 30 to 104°F |
| Service: | manufacturer’s |
| Installed capacity: | 10.5 kW |
| Operating capacity: | 7 kW |
| Compressed air: | 6 bar |
| Air demand: | 17l/ cycle |
| Gross weight: | approx. 815lb |
| Dimensions: | H/W/L: 51″ x 40″ x 108″ |
| Dimensions of sealing bar: | L/W: 800 x 600 mm |
| Maximum dimensions of the packed item: | L/W/H: 28″ x 22.5″ x 11.5″ |
| Maximum weight: | 22 lb |
| Film type: | Polyolefin shrink film |
| Film perforations: | Yes |
| Internal dimensions of the tunnel: | W/H/L: 24″x11.61″x 31″ |
| Operating temperature: | 30 to 104°F |
| Service: | manufacturer’s |
